Products > Optical Elements > Crystals > Nd: YAG Crystal

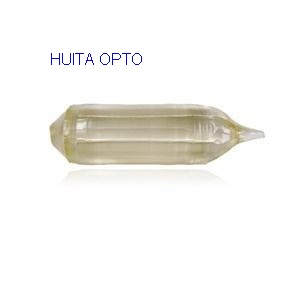

Nd: YAG Crystal
Product name : Nd: YAG Crystal
Product No. : 20219611449
Material : Y3Al5O12
Size : 10×10×0.5mm、10×5×0.5mm or according to the customer's requests
Density(g/cm3) : 4.56
Refractive Index : 1.82 @1μm
Form :
Purity :
Application : Laser
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Crystal direction: [111] or [100], deviation within 5 ℃
Crystal structure: Cubic
Mohs hardness: 8.5
Lattice constant: 12.01 Å
Wavefront distortion: ≤ 0.125l/25mm
Specific heat: 0.59j/g • cm- 3@0 -20℃
Elastic modulus: 310gpa
Young's modulus: 3.17x104kg/mm2
Thermal conductivity: 14W / M/ K@20 ℃ 10.5W/m/ K@100 ℃
Thermo optic coefficient: dn / dt = 7.3x10-6 / ℃
Thermal shock resistance: 800W / M
Dimensional tolerance: diameter: ± 0.05mm; Thickness: ± 0.1mm
Cylindrical processing: fine grinding or polishing
End face parallelism: ≤ 20 ²
Flatness of end face: L / 10
Surface quality: 10-5 (mil-o-13830a)
Chamfer: 0.15 ± 0.05mm
Reflectivity of antireflective film: ≤ 0.2% @ specific wavelength
Light transmission band range: 250-5000
Anti light damage threshold: ≥ 15jcm- 2@1064nm
